How to: Removing Duracoat from Anodized Scope

I recently purchased a good scope at a great price: A Leupold Mk4 6.5-20x50 Illuminated Tactical-Milling Reticle. However, the scope was Duracoated in a custom tan paint job.



Duracoat states that their paint can only be removed through sand-blasting. The paint cures in to a latex like finish, which is relatively wear resistant, and forms very good adhesion to the underlying finish. I was trying to scratch off the duracoat with a pen and it was very scratch resistant.

However, I've heard zip-strip does a good job of removing duracoat.



The stuff comes in a gel type format. IIRC it's a Methyl Ethyl Ketone with gel to prevent evaporation.

To remove you will need:

1.) A paintbrush, or a lot of Q-tips.
2.) 0000 Superfine Steel Wool.
3.) Zip-Strip.
4.) Painters masking tape.

I used the masking tape to cover up the plastic eye-box and to protect the lenses.

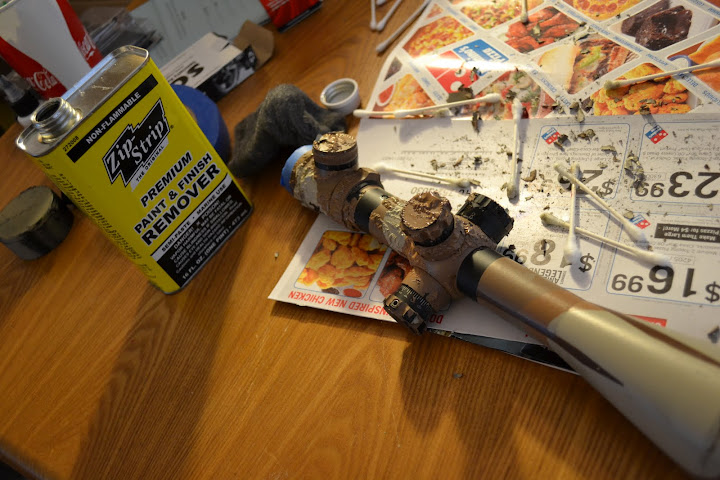

Apply the zip-strip to the paint. As soon as I applied the zip-strip, the paint almost immediately bubbled up:



Then, remove the bubbled up paint with the 0000 steel wool. The steel wool is fine enough to avoid scratching the anodizing on the scope.

Reapply the zip-strip as necessary and remove the bubbled up paint with steel wool. I also used a mechanical pencil to scratch hard to reach areas like the knurled target knobs.

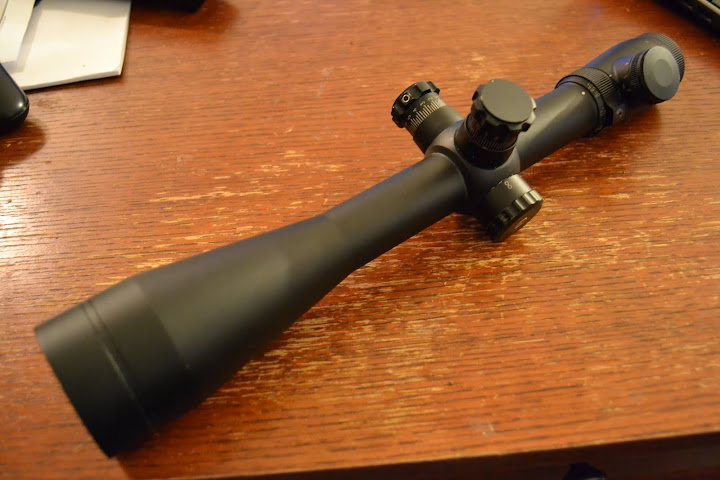

Final Result:



=======================

I was a little uncomfortable at first with putting chemicals all over a high-end scope, and was also worried about damaging the anodizing. However, the Zip-Strip does a very good job of removing the paint without damaging the finish.

Hope this helps anyone who's thinking about removing duracoat.
__________________
Quote:
Originally Posted by Lieber Code on the laws of war
"Men who take up arms against one another in public war do not cease on this account to be moral beings, responsible to one another and to God."

Last edited by KirStang; 05-08-2011 at 08:40 PM..
KirStang is offline
Old 05-08-2011, 05:27 PM   #2 (permalink)
Eat your vegetables

genuinegirly's Avatar

Super Moderator
Location: Arabidopsis-ville
Beautiful result. It looks like a lot of work went into the process.
__________________
"Sometimes I have to remember that things are brought to me for a reason, either for my own lessons or for the benefit of others." Cynthetiq

"violence is no more or less real than non-violence." roachboy
genuinegirly is offline
Old 05-11-2011, 01:00 AM   #3 (permalink)
I'll be on the veranda, since you're on the cross.

monkeysugar's Avatar

Location: Rand McNally's friendliest small town in America. They must have strayed from the dodgy parts...
Good to know...will have to give this a try sometime.
__________________
I've got the love of my life and a job that I enjoy most of the time. Life is good.
monkeysugar is offline
